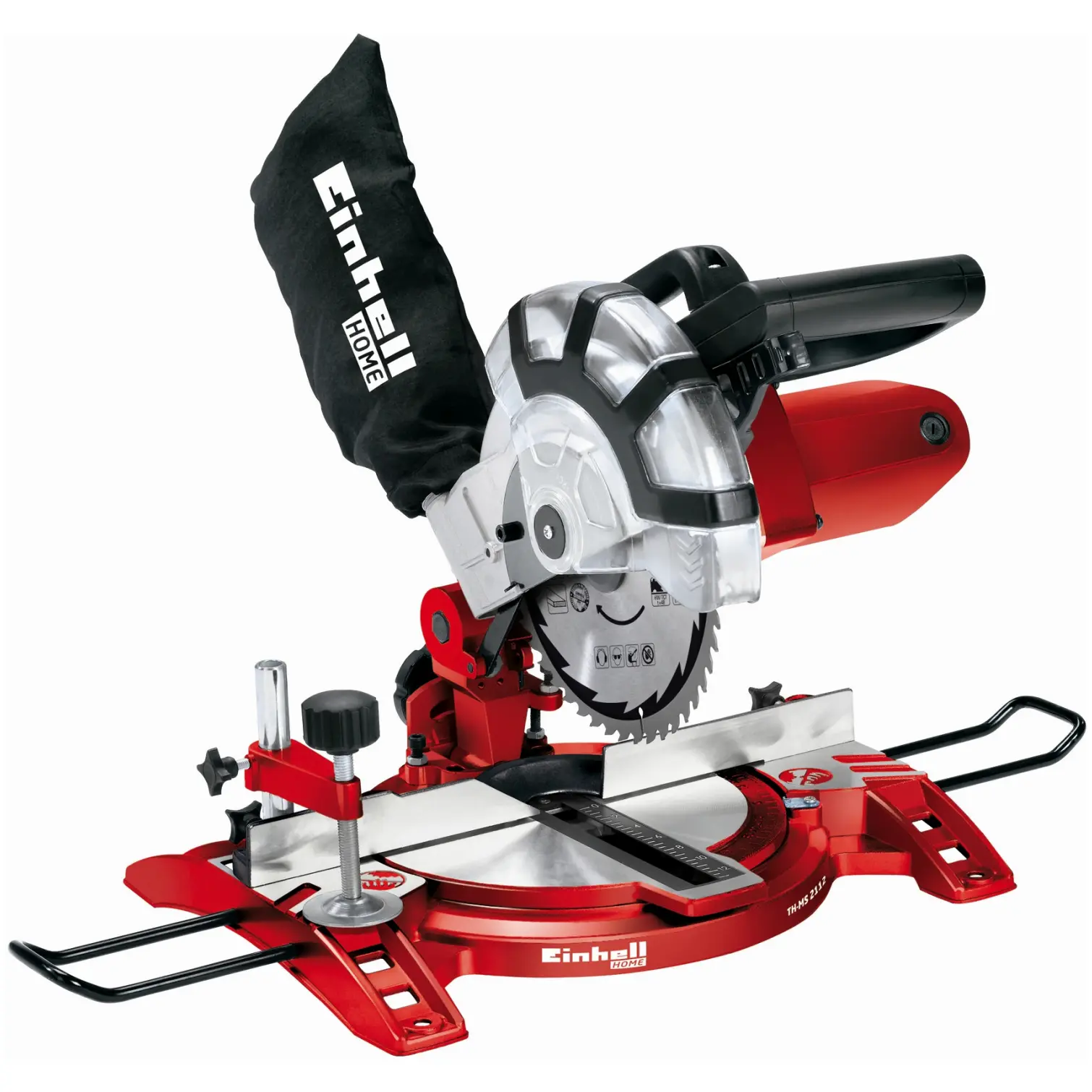

Equipped with a carbide saw blade in professional quality, the TC-MS 2112 crosscut and miter saw is quickly available to carry out minor jobs such as making crosscuts and miter cuts in workpieces made of wood, laminated panels and plastics. The high-quality work table made of die-cast aluminium comes with an exact angle adjustment facility which can be latched single-handedly in various positions. The table insert is equipped with a practical scale for reading off the workpiece width easily from the working position. While workpiece supports on both sides and a reliable clamping device ensure exact operation, a cutting depth control facility permits even more challenging jobs to be performed with ease. The carbide-tipped saw blade in professional quality offers a cutting capacity of over 200 m in particleboard and is easily changed thanks to a spindle lock. A sawdust bag keeps the workplace clean and a transport brace ensures easy and safe transportation.

Description

• High-quality HW-saw blade for perfect cuts
• The work table is made of light and stable alu die-cast
• Turntable with accurate locking positions for all common angles
• The saw head is infinitely up to 45° tiltable to the left
• Workpiece supports on both sides for long workpieces
• Clamping device for holding the workpiece securely in position
• Spindle lock for an easy and fast blade change
• Includes sawdust bag
• Well readable angle scales for the mitre- and angle-cuts

Technical Details

• % power S6: 40 %
• Cutting depth 45° x 45°: 32 mm
• Cutting depth 90° x 90°: 55 mm
• Cutting width 45° x 45°: 80 mm
• Cutting width 90° x 90°: 120 mm
• Idle speed max: 5000 min^-1
• Number of saw blade 1 teeth: 48 pcs
• Power S6: 1600W
• Product weight: 7.1 Kg
• Saw blade 1 diameter: 210 mm
• Saw blade 1 type: HW/TCT
• Saw blade holder diameter: 30 mm
• Suction connection diameter: 36 mm
